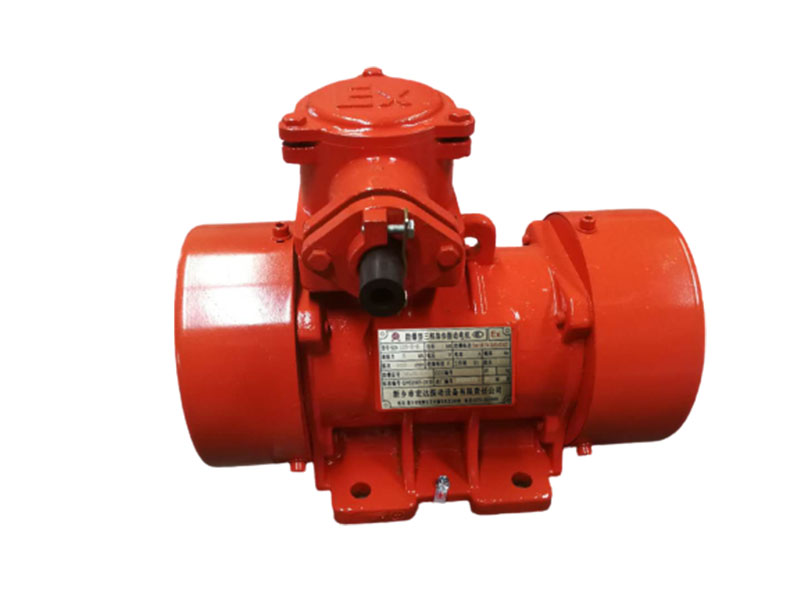

防爆型三相异步振动电机
产品说明
防爆电机安装尺寸
型号 | A | B | H | AB | BB | C | HD | L | M- K | 质量KG |
YBZH 2.5-6 | 180 | 140 | 125
| 220 | 180 | 16 | 330 | 400 | 4-ø14 | 50 |
YBZH 5-6 | 180 | 140 | 125 | 220 | 180 | 16 | 330
| 420 | 4-ø14 | 55 |
YBZH 8-6
| 220 | 160 | 140 | 270 | 230 | 22 | 360
| 470 | 4-ø18 | 75
|
YBZH 10-6
| 220 | 160 | 140 | 270 | 230 | 22 | 360
| 470 | 4-ø18 | 80
|
YBZH 16-6
| 260 | 180 | 160 | 320 | 260 | 25 | 390
| 515 | 4-ø26 | 115
|
YBZH 20-6
| 260 | 180 | 160 | 320 | 260 | 25 | 390
| 530 | 4-ø26 | 120
|
YBZH 30-6
| 320 | 200 | 195 | 400 | 300 | 30
| 480
| 560 | 4-ø33 | 200
|
YBZH 40-6
| 320 | 200 | 195 | 400 | 300 | 30 | 480
| 560 | 4-ø33 | 210
|
YBZH 50-6
| 370 | 200 | 225 | 460 | 300 | 32 | 530
| 630 | 4-ø39 | 305
|
YBZH 60-6
| 370 | 200 | 225 | 460 | 300 | 32 | 530
| 630 | 4-ø39 | 340
|
YBZH 75-6
| 370 | 260 | 225 | 460 | 440 | 35 | 450
| 820 | 4-ø45 | 410
|
YBZH 100-6
| 370 | 260 | 225 | 460 | 440 | 35 | 540
| 820 | 4-ø45 | 425
|
YBZH 2.5-4
| 180 | 110 | 110 | 220
| 150 | 15 | 315
| 355 | 4-ø14 | 35
|
YBZH 3.5-4
| 180 | 110 | 110 | 220 | 150 | 15 | 315
| 355 | 4-ø14 | 38
|
YBZH 5-4
| 180 | 110 | 110 | 220 | 150 | 15 | 315
| 370 | 4-ø14 | 38
|
YBZH 8-4
| 180 | 140 | 125 | 230 | 190 | 20 | 330
| 420 | 4-ø18 | 50
|
YBZH 10-4
| 180 | 140 | 125 | 230 | 190 | 20 | 330
| 420 | 4-ø18 | 50
|
YBZH 16-4
| 220 | 160 | 140 | 270 | 230 | 25 | 380
| 465 | 4-ø26 | 80
|
YBZH 20-4
| 220 | 160 | 140 | 270 | 230 | 25 | 380
| 465 | 4-ø26 | 85
|
YBZH 30-4
| 260 | 180 | 160 | 320 | 260 | 25 | 390
| 510 | 4-ø29 | 120
|
YBZH 50-4
| 320 | 200 | 195 | 400 | 300 | 30 | 480
| 560 | 4-ø33 | 196
|
YBZH 2.5-2
| 180 | 110 | 110 | 220 | 150 | 15 | 315 | 370 | 4-ø14 | 38 |
YBZH 5-2
| 180 | 110 | 110 | 220 | 150 | 15 | 315
| 370 | 4-ø14 | 38 |
YBZH 8-2
| 180 | 110 | 110 | 220 | 150 | 15 | 315
| 370 | 4-ø14 | 40 |
YBZH 10-2
| 180 | 110 | 110 | 220 | 150 | 15 | 315
| 370 | 4-ø14 | 45 |
YBZH 16-2
| 80 | 140 | 125 | 230 | 190 | 20 | 330
| 420 | 4-ø18 | 55 |
YBZH 20-2
| 180 | 140 | 125 | 230 | 190 | 20 | 330
| 420 | 4-ø18 | 60 |
YBZH 30-2
| 220 | 160 | 140 | 270
| 230 | 25 | 380
| 465 | 4-ø26 | 80 |
防爆电机技术参数
型号 | 激振力KN | 功率KW | 电压V | 电流A | 频率HZ | 接法 | 振次min | 绝缘等级 | 工作定额 | 防护等级 |
YBZH 2.5-6 YZD | 2.5 | 0.2 | 380 | 0.84 | 50 | Y | 950 | B:F | S1 | IP54 |
YBZH 5-6 YZD | 5 | 0.4 | 380 | 1.68 | 50 | Y | 950 | B:F | S1 | IP54 |
YBZH 8-6 YZD | 8 | 0.55 | 380 | 1.84 | 50 | Y | 960 | B:F | S1 | IP54 |
YBZH 10-6 YZD | 10 | 0.75 | 380 | 2.5 | 50 | Y | 960 | B:F | S1 | IP54 |
YBZH 16-6 YZD | 16 | 1.1 | 380 | 3.37 | 50 | Y | 960 | B:F | S1 | IP54 |
YBZH 20-6 YZD | 20 | 1.5 | 380 | 4.59 | 50 | Y | 960 | B:F | S1 | IP54 |
YBZH 30-6 YZD | 30 | 2.2 | 380/660 380 | 6.5/3.7 6.5 | 50 | Δ/Y Δ | 960 | B:F | S1 | IP54 |
YBZH 40-6 YZD | 40 | 3 | 380/660 380 | 8.05/4.6 8.05 | 50 | Δ/Y Δ | 960 | B:F | S1 | IP54 |
YBZH 50-6 YZD | 50 | 3.7 | 380/660 380 | 9.6/5.5 9.6 | 50 | Δ/Y Δ | 960 | B:F | S1 | IP54 |
YBZH 60-6 YZD | 60 | 4.0 | 380/660 380 | 13/7.4 13 | 50 | Δ/Y Δ | 960 | B:F | S1 | IP54 |
YBZH 75-6 YZD | 75 | 5.5 | 380/660 380 | 14.4/8.2 14.4 | 50 | Δ/Y Δ | 960 | B:F | S1 | IP54 |
YBZH 100-6 YZD
| 100 | 7.5 | 380/660 380 | 19/10.9 19 | 50 | Δ/Y Δ | 960 | B:F | S1 | IP54 |
YBZH 2.5-4 YZD | 2.5 | 0.13 | 380 | 0.52
| 50 | Y | 1420 | B:F | S1 | IP54 |
YBZH 3.5-4 YZD | 3.5 | 0.17 | 380 | 0.7 | 50 | Y | 1420 | B:F | S1 | IP54 |
YBZH 5-4 YZD | 5 | 0.25 | 380 | 0.99 | 50 | Y | 1420 | B:F | S1 | IP54 |
YBZH 8-4 YZD | 8 | 0.45 | 380 | 1.59 | 50 | Y | 1420 | B:F | S1 | IP54 |
YBZH 10-4 YZD | 10 | 0.55 | 380 | 1.73 | 50 | Y | 1420 | B:F | S1 | IP54 |
YBZH 16-4 YZD | 16 | 0.75 | 380 | 2.1 | 50 | Y | 1440 | B:F | S1 | IP54 |
YBZH 20-4 YZD | 20 | 1.1 | 380 | 2.7 | 50 | Y | 1440 | B:F | S1 | IP54 |
YBZH 30-4 YZD | 30 | 1.5 | 380 | 3.84 | 50 | Y | 1460 | B:F | S1 | IP54 |
YBZH 50-4 YZD | 50 | 2.2 | 380/660 380 | 8.2/4.7 8.2 | 50 | Δ/Y Δ | 1460 | B:F | S1 | IP54 |
YBZH 5-2 YZD | 5 | 0.4 | 380/660 380 | 1 0.57 | 50 | Y | 2800 | F | S1 | IP55 |
YBZH 8-2 YZD | 8 | 0.55 | 380/660 380 | 1.31 0.75 | 50 | Y | 2900 | F | S1 | IP55 |
YBZH 10-2 YZD | 10 | 0.75 | 380/660 380 | 1.72 0.99 | 50 | Y | 2900 | F | S1 | IP55 |
YBZH 16-2 YZD | 16 | 1.1 | 380/660 380 | 2.5 1.44 | 50 | Y | 2900 | F | S1 | IP55 |
YBZH 20-2 YZD | 20 | 1.5 | 380/660 380 | 3.4 1.96 | 50 | Y | 2900 | F | S1 | IP55 |
YBZH 30-2 YZD | 30 | 2.2 | 380/660 380 | 4.7 2.71 | 50 | Y | 2900 | F | S1 | IP55 |
